Assembly of TD75 General Belt Conveyor

Time:2016-04-19　Form:Jiangsu Wuyun　Hit:3553

/

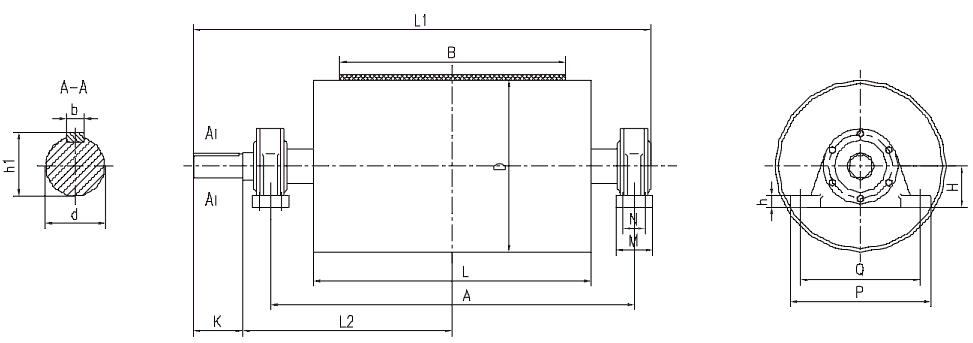

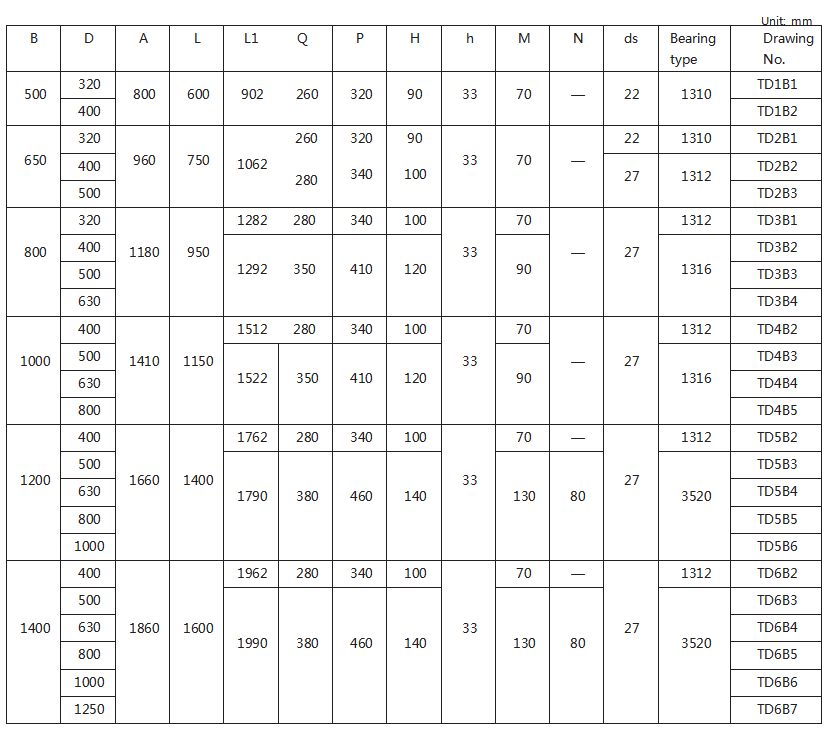

I. Driving drum
/
/

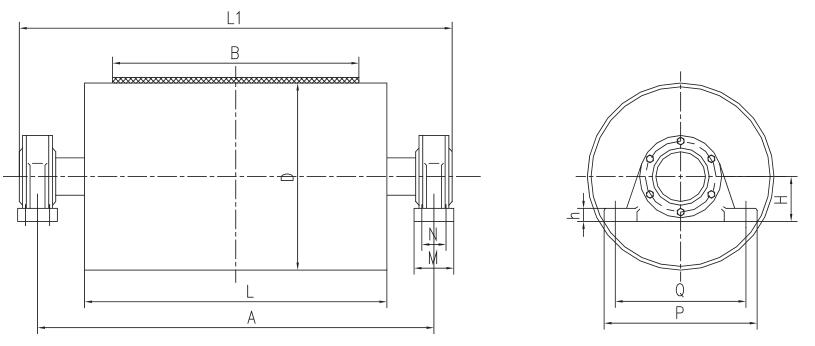

II. Bend drum

/
/

III. Idler

1. Trough idler and buffer idler

/

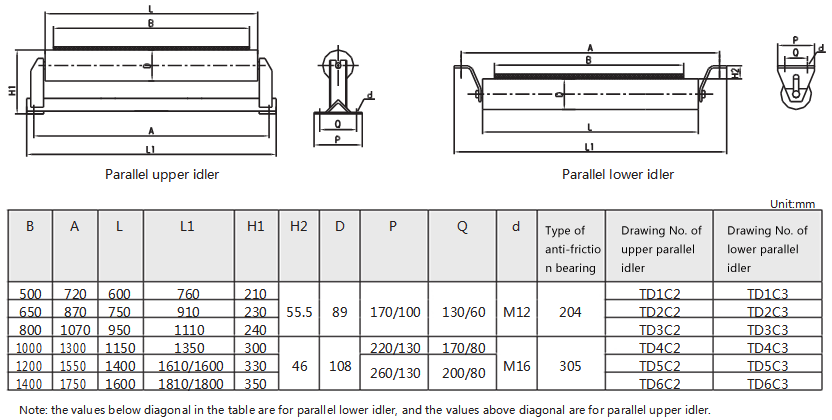

2. Parallel idler

/


3. Trough self-aligning idler

/

4. Parallel self-aligning idler

/

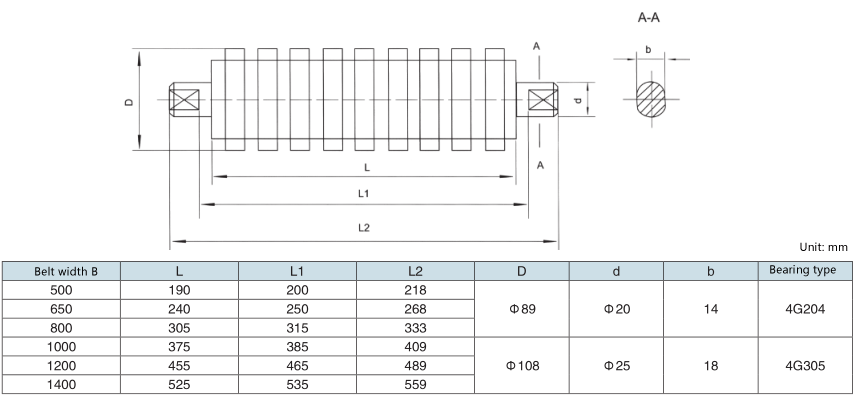

IV. Roller of idler

1. TD75 general type roller
/

2. TD75 buffer idler

/
